Fire Sprinklers application for Revit is exclusive for its automatic system connection. Compatible for fire protection design work anywhere in the world, as it incorporates NFPA, ISO, and AU standards. This BIM solution lets you choose between visually displayed routing options. Plus it automatically routes pipes from sprinklers to distribution pipes per user-predefined rules. Run clash analysis between different parts of fire protection system and other elements in the modelįire Sprinklers software makes for easy planning of sprinkler locations in a BIM model with real-time interference checking.Modify fire protection system at any stage of your project.Pre-calculate pipe diameters to meet national or company standards.Choose the best routing of your system by visually-depicted routing options.

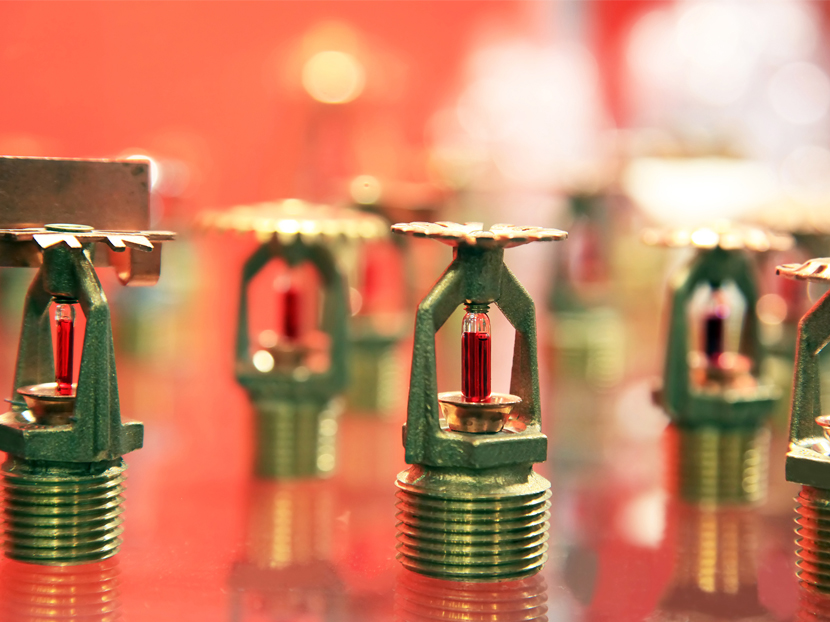

Easily distribute Sprinkler Heads in accordance to the coverage area.We also recommend the separate Cut Openingsolution to easily create openings with fire safety components where pipes intersect with walls, floors, roofs, ceilings, beams, and columns. The included MEP Hangers functionality enables instant, large-scale insertion of hangers and supports for accurate on-site assembly of sprinkler system pipes. It also properly sizes system pipes and automatically connects them based on the visually-depicted routing option you choose.
Simple yet highly flexible rules are used to distribute sprinkler heads instantly throughout a current or linked Revit model with the clash tolerance you specify. The software incorporates NFPA, AU, and ISO standards and can accommodate any others. Automated real-time updating when changes are made to the project ensures that you’ll get accurate bills of materials and work drawings for on-site assembly.Ĭompatible with Autodesk® Revit® 2022, 2021, 2020 Fire Sprinklers (previously named Smart Sprinklers) makes the design and routing of fire protection systems in Revit efficient.
